This is the technical specifications of the soft ferrite.

(a) magnese-zinc soft ferrite material to be used - MN8CX (aka NMG M29) from national magnetics group.inc

(b) shape - cube

(c) dimension - length of each side = 160mm

(d) number of cubes of soft ferrite needed - 4 pieces

(c) additional information - print AL value on the body of the cubes of soft ferrite requested for

N

Nwakuche

Adept
4 bobbins will required that are made of plastic but i didnt post that as i have not yet drawn it and it can be produced by any plastic company.

N

Nwakuche

Adept
I need a reply asap please. The entire human civilization is going to shit courstey of demonic humans who are known as the cabals and to save ourselves, we need to take power and following that our freedom from them.

N

Nwakuche

Adept
i am sorry for not being able to reply on the discord server, while i have seen the notification that i have messages on my email, i cant login in on discord and reply because my smart phone is indisposed and with the java phone that i am using for now, i can only reply on alien expanse.

anyway, i am expecting some cash but even it comes, i will priotize using it to construct a small scale demonstration of the timerate derived ether power supply otherwise as the magvid free energy device. So get your fingers crossed and wait for subsequent updates here on alien expanse.

N

Nwakuche

Adept
While i have enough money to complete the project, one of major problem is sourcing the needed ferrite core. So i have been reviewing my initial planned coiling configuration in view of using a electrical steel toroid instead of the unavialable nickel zinc toroid. This my new planned configuration was used in the steven mark TPU. It involves coiling a pair of caduceus coils on the toroid inorder to generate the required rotating magnetic field. Output wire is then coiled around the circumference of the toroid.

N

Nwakuche

Adept
there is a high likelihood that i will not get the help (lcr multimeter among other things) that i need so in view of that, i am going to redesign the drive circuit to be self resonant and auto two phase signal generative. This ofcourse will complicate the circuit much further than i originally intended.

if i succeed in accomplishing this work, i will make it known here but do not expect me to disclose how i did it more than what i have already disclosed here or the little i will disclose further for i do not think you are yet worthy to receive such technology.

if you want the technology if it works out, you will have to do the work of seeking for it until you get it.

now for the circuit, i will use vco for self resonance, a peak detector coupled with a flip flop to generate the other phase (90 degrees) signal and a inverter to generate the complementary signals needed to drive the push pull stage.

N

Nwakuche

Adept
nivek said:
I have three Extech 22-816-NIST Multimeters, are these type suitable for your applications?...

...
Click to expand...

thanks. But the multimeter you listed here does not have the inductance measurement function.
i have a digital multimeter with me but it does not have the capacity to measure inductance.
i will try to go through with the self resonant circuit but i will keep you updated.
thanks

spacecase0

spacecase0

earth human
Nwakuche said:
i am going to redesign the drive circuit to be self resonant and auto two phase signal generative.
Click to expand...
having tried to figure out the resonance of things, it is much better to do what you say.
but if you want a tester, these work quite well and don't cost to much
www.ebay.com

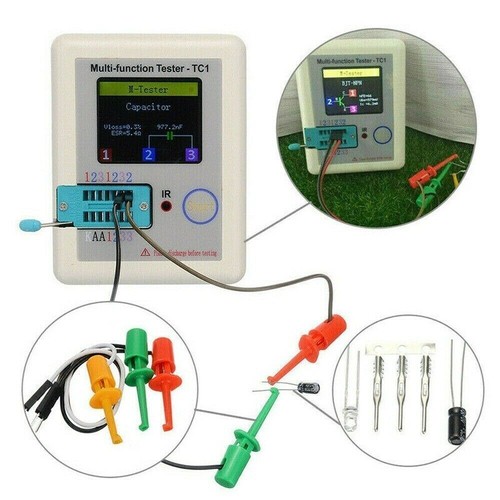

LCR TC1 Transistor Tester TFT Capacitance Meter Electronic Component ESR NPN PNP 1048039829383 | eBay

Find many great new & used options and get the best deals for LCR TC1 Transistor Tester TFT Capacitance Meter Electronic Component ESR NPN PNP at the best online prices at eBay! Free shipping for many products!
www.ebay.com

N

Nwakuche

Adept
I have almost completed the drive circuit for the free energy and it is looking promising. I have done tests to comfirm the two phase signal generating section and it works perfectly, what remains now to be added to be veroboard is the schmitt trigger inverter (cd40106b), the transistor amplifiers and the push pull stages.

I decided to avoid the self resonant plan in order to keep things simple for me and for soever decides to replicate the free energy device. This first construction is meant to prove that the magvid principles works. Subsequent iteration will involve construction of a full scale pure sine wave inverter with the plans available here.

N

Nwakuche

Adept
i used two ne555 timers to generate a fixed frequency two phase square wave signals. One of the timers is configured as an astable multivibrator with two diodes used to ensure a duty cycle of 50% percent. The other timer is configured as a slave to the first timer and is made to be two times faster. Only a capacitor is connected to pin 2 and pin 6 and a resistor is connected from the capacitor to the output of the master timer. The discharge pin of the slave timer is left disconnected. The RC time constant of the slave is two time faster than the master timer.

i will post the schematic diagram for replications and a picture of my work.

N

Nwakuche

Adept
I need three items and i dont have the money to buy them and also it is not avaliable in my country nigeria.

these items are :
(1)10 pcs of lmc555
(2) an LCR multimeter
(3) a ferrite toroid

if you are interested in buying and donating these items, send me a message and i will send you the links where you can purchase them and my address for shipments. Use DHL for fast delivery

N

Nwakuche

Adept
While i wait for what i need, either through donations or i raise money before then. I plan to use an electrical steel toroid without resonance to see if i will get any output.

N

Nwakuche

Adept
If you decide to be make the donation of the listed items, you have a lifetime access to the projects i have in the works if the testing of the magvid principles (timerate manipulation) works as i expect it to work.

spacecase0

spacecase0

earth human
not sure if it helps, but the 4047 chip guarantees 50% duty cycle by design
and the 4017 chip will divide that up into how ever many phases you need.

I also decided to just tune the frequency by hand looking for resonance, and once I have the frequency range then I will automate the resonance.

N

Nwakuche

Adept
spacecase0 said:
not sure if it helps, but the 4047 chip guarantees 50% duty cycle by design
and the 4017 chip will divide that up into how ever many phases you need.

I also decided to just tune the frequency by hand looking for resonance, and once I have the frequency range then I will automate the resonance.
Click to expand...

Absolute must for you to buy the multimeter to make your life easier. The multimeter is actually what is holding me back, the rest can be managed. Believe me on this.

Get the LCR multimeter. The 4047 and 4017 is a good combo but not the best.
